Low, Medium & High Disk Explained - Finding the Right 3-Piece Wheel Face for Your Brakes

Why this guide matters: Every set of three-piece wheels in the WheelsGang catalog lists disk type and X-factor measurements next to the usual diameter, width, and offset. Those numbers aren’t filler; they’re the reason your brand-new rims either spin freely or smack straight into your brake calipers. Below you’ll learn exactly what “low disk,” “medium disk” and “high disk” mean, how X-factor is measured, and how to choose the shallowest disk (and therefore the deepest lips) that still clears your brakes.

0 | Why “Disk Science” Became Critical (A Brief History)

• 1980s: Japanese tuners tweak offset but keep modest single-piston brakes, so a one-disk-fits-all mindset works.

• 1990s: Skyline GT-R, NSX & Supra push multi-piston calipers; Work and SSR introduce “low” vs “high” disk castings.

• 2000s: Massive OEM Brembos and aftermarket big-brake kits explode; wheel brands add middle ground (A-, R-, MD-disks).

• 2010s: Carbon-ceramic rotors and 6–8-piston calipers demand even higher disks; lips shrink, spacers rise in popularity.

• Today: Digital CAD + CNC let makers offer 5 + disk profiles per model - but the buyer must choose wisely.

1 | What Is Disk Type?

Think of a three-piece wheel as three separate parts: the barrel, the lip, and the center disk (also called the face). Disk type describes the profile of that center casting or forging - specifically, how far the spokes sit away from the hub mounting pad.

• Low disk (sometimes “L-disk,” “SL-disk,” or “W-disk”)Spokes sit closest to the hub. Maximum exposed lip depth, but the least brake-caliper clearance.



• Medium disk (“M-disk,” “MD,” “NR,” “A-disk”)A compromise profile. Moderate lip, extra millimeters of spoke curvature or back-pad thickness for bigger calipers.



• High disk (“H-disk,” “T-disk,” “HP,” “HI”)Spokes sit farthest from the hub. Built-in spacer on the back pad and/or extra spoke concavity. Clears large multi-piston calipers but leaves less room for lip depth.



Manufacturers alter disk type by:

1. Adding material to the back pad (like machining a built-in spacer).

2. Altering spoke shape (deeper concave or a pronounced “C” curve).



3. Combining both for extreme big-brake kits.

2 | Why Disk Type Affects Lip Size & Offset

Lower disk = spokes closer to the hub = more space in front of the face for a deep lip. But every millimeter the spokes move inward, the wheel’s overall offset becomes more negative. A higher disk moves spokes outward, reducing lip depth and pushing the offset more positive. That’s why:

• Front wheels with giant calipers often need high or medium disks.

• Rear wheels (smaller calipers) can usually run low disks for a show-stopping lip.

3 | What Is X-Factor (Caliper Clearance) and How We Measure It

X-factor is the vertical distance (in millimeters) from the wheel’s mounting pad to the point where the back of the spoke would touch a brake caliper. We measure it in-house with a machined cone gauge:

1. Place the gauge flat against the hub pad.



2. Slide until it contacts the innermost surface of a spoke.



3. Read the number where the cone meets the pad.



You’ll see this figure in every WheelsGang listing. Match it to your brake-caliper “poke” (see next section) and aim for ≥ 3 mm extra clearance.

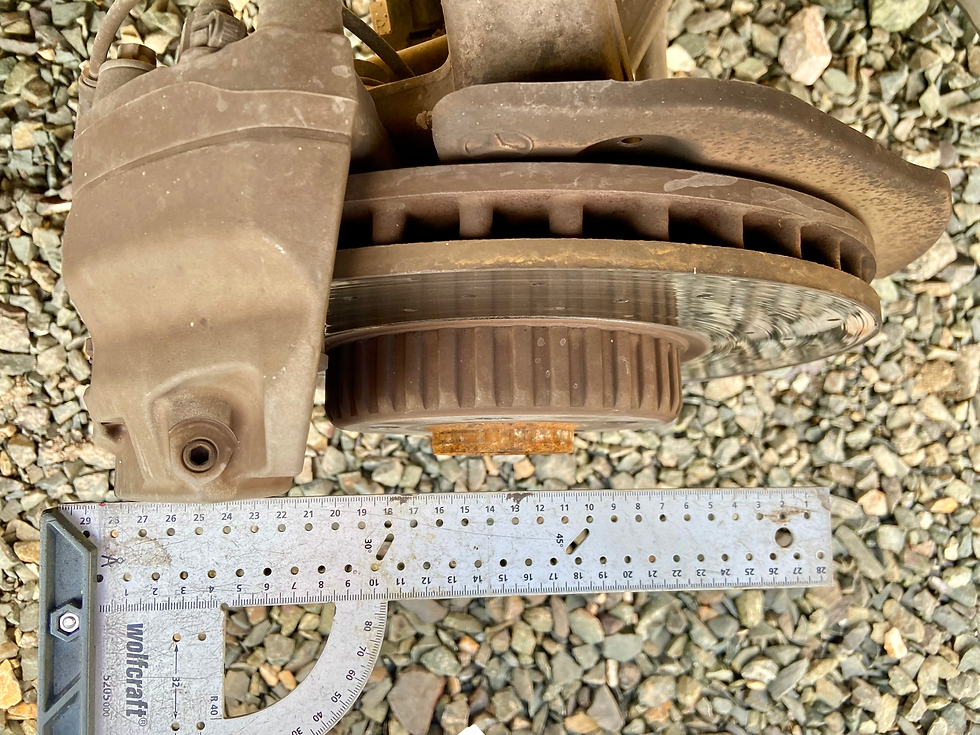

4 | How to Measure Your Brake Calipers in Five Minutes

1. Wheel off, car on jack stands.

2. Lay a metal ruler across the brake rotor’s face (where the wheel sits).



3. Use a feeler gauge or Vernier caliper to measure caliper protrusion - how far the caliper body sticks out beyond the rotor’s hat.



4. Compare that dimension to the wheel’s X-factor.



5. If the caliper is within 2–3 mm of the X-factor, you’re at the limit; size up disk type or plan on a small slip-on spacer.



Tip: Rear brakes are almost always smaller, so you can often run a lower disk (deeper lip) out back without issues.

5 | Brand-by-Brand Disk Labels (Quick Reference - No Table Needed)

• Work Wheels

  • Lowest clearance/ least clearance: W-Disk, O-Disk

  • Mid-range: A-Disk, R-Disk

  • Maximum clearance: T-Disk

• SSR Wheels

  • Lowest clearance: SL (Super-Low) Disk

  • Mid-range: NR (Normal) or MD (Mid) Disk

  • Maximum clearance: HP (Hyper) Disk

• Weds Kranze

  • Lowest clearance: LO Disk

  • Mid-range: MD Disk

  • Maximum clearance: HI Disk

Remember: Naming varies by brand, but the physics never changes. Always confirm the wheel’s X-factor measurement against your brake-caliper protrusion - don’t rely on labels alone.

6 | Barrel (Drop-Center) Clearance  -  The Other Half of the Equation

Even if the spokes clear, a caliper can still rub the wheel barrel. That’s dictated by wheel diameter and lip style:

• Reverse or full-face barrels have the most internal room.



• Step-lip barrels lose roughly one inch of barrel clearance compared with reverse-lip of the same outer diameter.



• Double-step lips (found on some vintage or VIP builds) lose almost two inches.

7 | Disk Choice vs. Aesthetics  -  Finding Your Balance

1. Decide the largest lip you need.

2. Measure your brakes for minimum X-factor.

3. Select the lowest disk that still meets or beats that X-factor.

4. Confirm barrel clearance if downsizing diameter or using step lips.



If you end up within 1–2 mm of contact, add a 3–5 mm slip-on spacer and re-measure; that tiny change can save thousands in custom-wheel reworks.

8 | Real-World Examples from WheelsGang Inventory

• Work VS-SS “H-Disk” fronts / “SL-Disk” rears  -  Perfect for Nissan Z cars running Brembo fronts and stock rears.

• Leon Hardiritt Bugel “Med Disk” all-round  -  Clears Lexus GS four-pot brakes while keeping respectable 2-inch lips.

• SSR Agle Strusse “Low Disk”  -  Ideal for older Skyline/240SX platforms with smaller calipers; huge lips, no spacer required.

Check each product page for disk type + X-factor in millimeters; then compare to your brake measurements.

9 | Frequently Asked Questions

Fitment & Clearance

Q : Can I just grind the caliper for clearance?

A : Light shaving is common on race cars, but for street builds it’s safer to choose the correct disk or add a 3–5 mm hub-centric spacer. Grinding can weaken caliper bridges.

Q : Does brake-pad wear change clearance?

A : Only by a fraction of a millimetre. Pads sit fully inside the caliper housing, so X-factor remains essentially constant throughout pad life.

Q : I upgraded to a big-brake kit after ordering wheels - what now?

A : Measure the new calipers, then contact us. Options include switching to a higher-disk face, adding a slim spacer, or relipping the wheel for more back-pad thickness.

Q : Can a wheel with huge concave spokes still be low disk?

A : Yes - if the concavity curves inward toward the hub. Disk height is determined by the spoke’s rearmost point, not the face’s visual depth.

Q : My barrel and spokes clear, but the valve stem hits the caliper. Solutions?

A : Swap to low-profile angled metal stems, relocate the stem to the outer lip (if the design allows), or use a 3 mm spacer.

Q : Do carbon-ceramic brakes expand when hot?

A : Minimal growth (<0.1 mm). Your 3 mm safety margin remains adequate even at track temps.

Q : How close is “too close” for spoke-to-caliper clearance?

A : We recommend at least 3 mm cold. Anything under 2 mm risks contact under hard braking or pad knock-back.

Q : What if the wheel clears everywhere except one caliper’s bridge bolt?

A : Small chamfers on the bolt head or using low-profile bolts often gain 1–2 mm - safer than grinding the caliper body.

Wheel Specs & Measurement

Q : What’s the fastest DIY method to check X-factor?

A : Tape two stacked business cards to the rotor hat, mount an old wheel, spin gently. If the cards are untouched you have ≈ 3 mm clearance. Replace with accurate caliper measurements before ordering.

Q : How do step-lip and reverse-lip barrels differ in brake clearance?

A : A single step lip loses roughly 13 mm (½″) of inner radius compared with a same-diameter reverse-lip barrel. Double-step loses about 25 mm (1″).

Q : Can I downsize wheel diameter and keep the same brakes?

A : Only if the barrel ID of the smaller wheel still exceeds the caliper radius. Step-lip construction often fails here - measure twice.

Q : Does rotor offset affect spoke clearance?

A : Yes. Higher rotor offset moves the caliper inboard, increasing clearance. Swapping to two-piece rotors with custom hats is a legit solution for tight setups.

Q : What torque spec should I use for multi-piece wheels?

A : 90 ft-lb (122 Nm) for M12 × 1.5 studs and 110 ft-lb (149 Nm) for M14 × 1.5 - always re-torque after 50 km.

Maintenance & Longevity

Q : Will a ceramic coating add brake clearance?

A : No - its thickness is measured in microns. It protects finish but doesn’t change geometry.

Q : Can I rotate faces between front and rear barrels?

A : Yes, provided PCD, hub bore, and bolt circle are identical. Verify X-factor first; fronts usually need higher disks.

Q : How often should I re-torque assembly bolts?

A : Once at 100 km after refurbishment, then annually. If you spot leaks or lip weeps, service immediately.

Q : Is Loctite safe on assembly bolts?

A : Only low-strength (blue) on clean, dry threads. Many builders prefer mechanical lock plates; over-torquing can distort lips.

Quick Reference - DOs & DON’Ts

DO measure caliper protrusion with vernier calipers; phone apps are fine for sanity checks but not final numbers.

DO choose the lowest disk that clears by ≥ 3 mm - deep lips are the reward.

DON’T assume barrel clearance just because spokes clear; always verify the inner radius.

DON’T rely solely on forum anecdotes - brake packages vary by trim and year.

Still stumped? Send our team your rotor diameter, caliper depth, and target specs - we’ll model the fit and recommend the perfect disk profile the first time.

10 | Bottom Line

• Low disk = maximum lip, minimum caliper space.

• High disk = maximum brake clearance, smaller lip.

• X-factor tells the truth - match it to your measured caliper protrusion plus 3 mm safety.

• Barrel clearance depends on wheel diameter and lip style; step lips reduce inner space.

Choose wisely, measure twice, and your custom wheels will bolt up perfectly - giving you the deepest dish your brakes will allow and the stance you actually envisioned.
